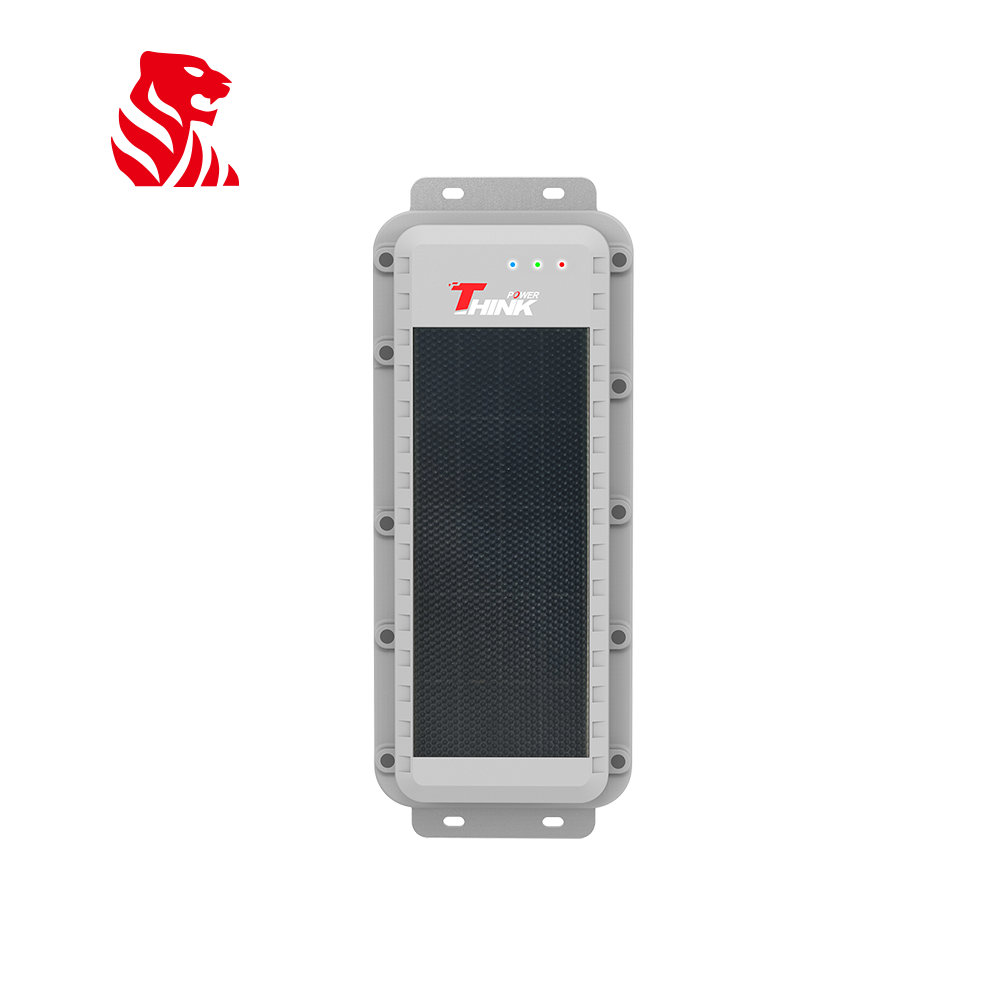

Solar Powered Magnetic GPS Terminal--TL-904D

Item No.: TL-904D
TL-904D is a big battery Solar Powered Magnetic gps tracker. which equipped with 10000Ah battery inside. It can be used for any temporary asset that you want to track . Such as car ,trailer, asset etc.
Description Specification Application
TL-904D is a solar powered GPS tracker designed for assets management. Such as trailers, containers, boats and other non-powered assets. The device shell is made of aluminum alloy material, resistant to high temperature, moisture, collision, deformation and impact. Additionally, TL-904D had equipped with BLE 5.0 module which enable the tracker to connect with the extra BLE sensor ( such as Temperature & Humidity sensor, Door sensor ) for more application scenarios.








Main Features

4G LTE/GSM
Supports 4G frequency with a fall back to 2G

GPS LBS WIFI Location
Accurate GPS LBS WIFI positioning

3 Axis Accelerator
Supports vibration detection in three planes

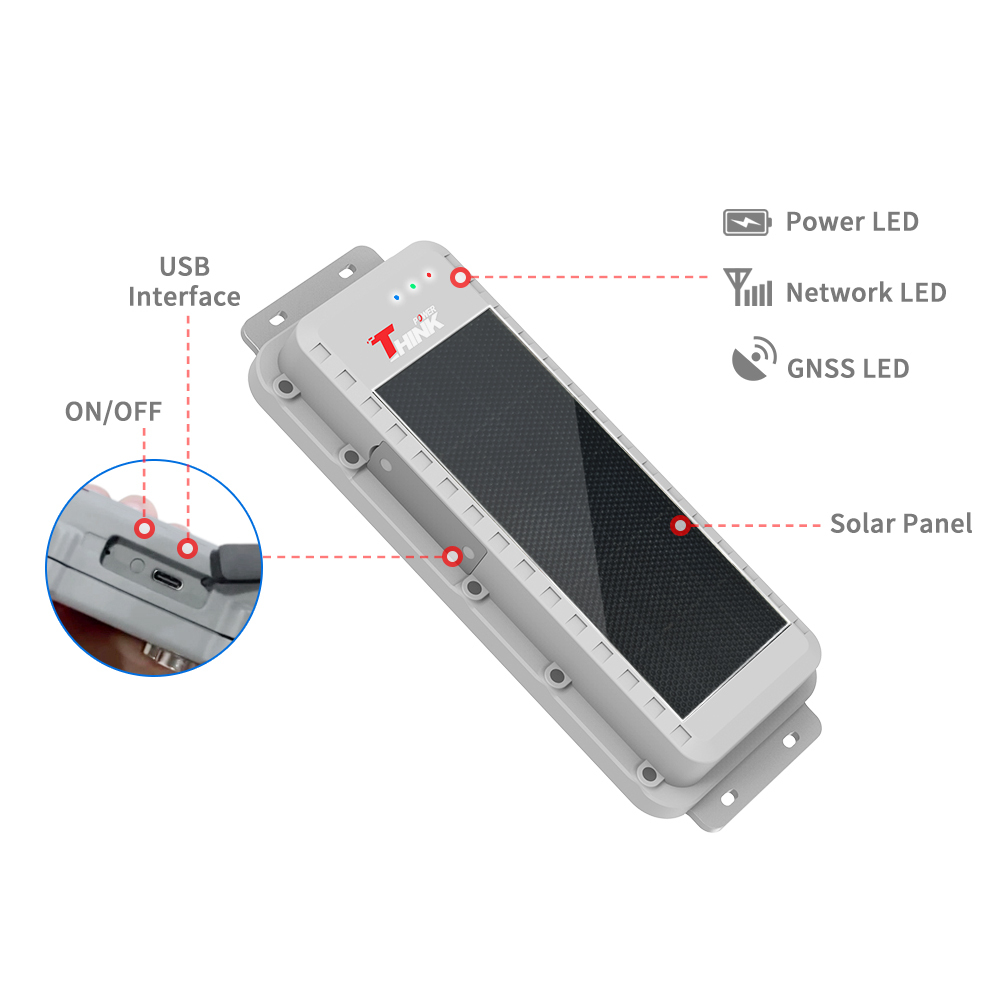

Solar Panel
As a supplment of battery power

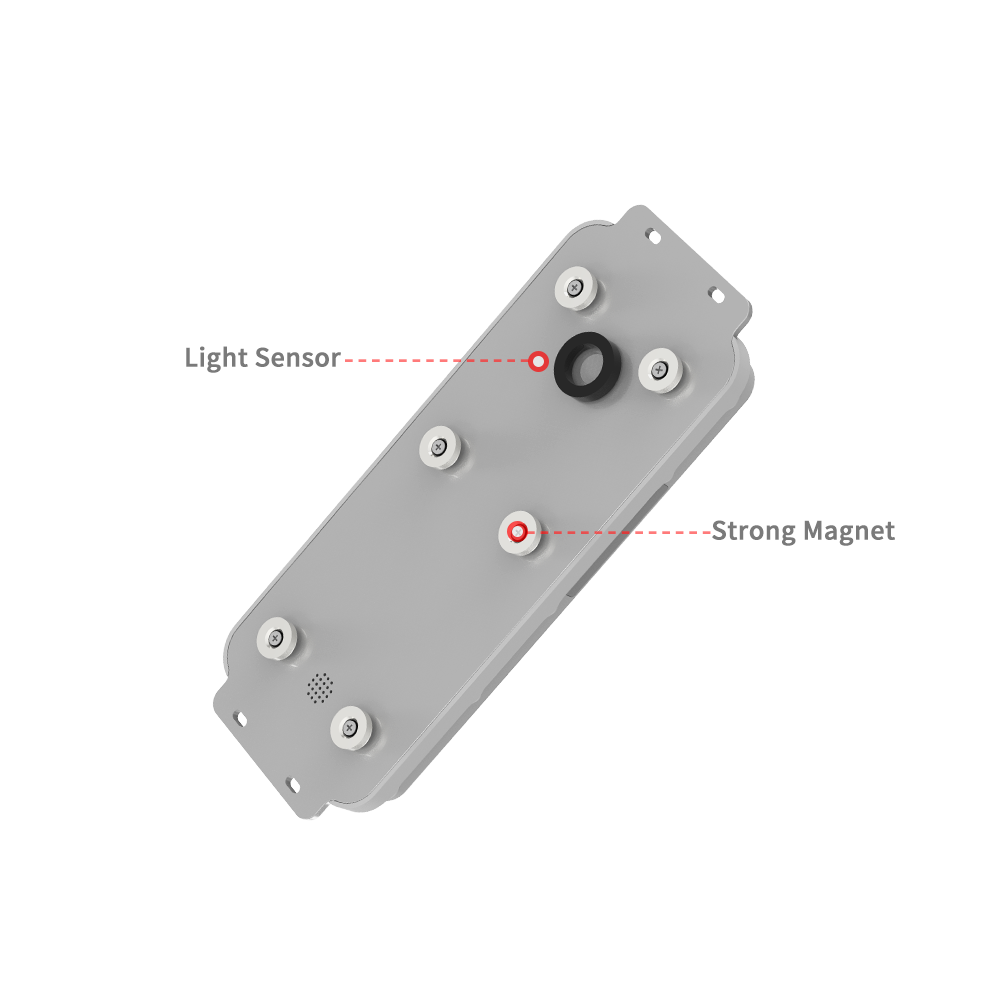

Light Sensor
Tamper detected by light sensor

Bluetooth 5.0
Supports external sensors communication

Robust Design
Device shell is made of aluminum alloy material

10000mAh Li-ion Battery
1 data/ day up to 3 years usage life

IP67 Water Resistance
Ensures stable operation in tough environment




Communication Specifications
Communication Mode  LTE/GSM/EDGE
Frequency Africa/Europe/Middle-East/South(east)-Asia
LTE Cat.1: B1/B3/B5/B7/B8/B20/B28
GSM/EDGE: B2/B3/B5/B8

Latin America/Australia
LTE Cat.1: B2/B3/B4/B5/B7/B8/B28/B66
GSM/EDGE: B2/B3/B5/B8

North America (CA/MX/US)
LTE Cat M1: B1/2/3/4/5/8/12/13/18/19/20/25/26/27/28/66/85
LTE Cat NB1/NB2: B1/2/3/4/5/8/12/13/18/19/20/25/28/66/71/85
GSM/EDGE: B2/B3/B5/B8
GNSS Specifications
Supporting System Concurrent GPS / GLONASS/Galileo/BD+LBS+WIFI
Tracking Sensitivy < -167dBm
Location Accuracy 2.5meters
General Specifications
Dimension 252.4mm*98.7mm*35mm (L*W*H)
Weight 670g
Waterproof IP67
Battery 10000mAh
Operation Temperature -20℃~+60℃
Temperature Sensor 20℃~+55℃
Others
LTE/GSM /WIFI Antenna Internal only
GNSS Antenna Internal only
Optional Accessories iBeacon,Temperature and humidity sensorDoor sensor, Magnets


TL-904D is a solar-powered high-power magnetic GPS positioning tracker.
Unlike other solar devices, the tracker designed by Think Power uses a combination of aluminum and plastic collectors.
Taking into account the working environment of the equipment and the life of the equipment, the base of TL-904D is made of aluminum alloy, and the structure is designed by the structural engineer using military specifications.
This enables the device to be used in complex and extreme environments.
The waterproof, anti-drop, and anti-collision functions of the device all meet the standards.
TL-904D is equipped with a 10000mAh lithium battery, and the design of hardware and software fully meets the low power consumption requirements of the device. (One piece of data a day, the device can be used for more than 3 years without considering solar charging)
Therefore, this equipment has a wide range of needs in container transportation management, trailer management, cold chain logistics management, and agricultural machinery vehicle positioning management.
