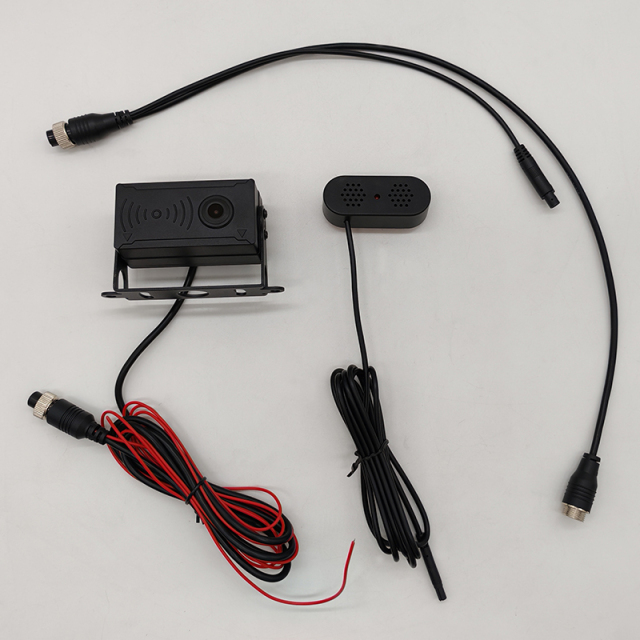

The TR500 integrates a 11GHz microwave radar and a 2MP high-definition camera, providing precise obstacle detection and distance warning. It supports dynamic monitoring and three-level graded beeping indicates the degree of danger.
Core Advantage 1. Dual-mode perception system
microwave radar + 1080P high-definition camera fusion detection 2. Triple intelligent early warning
graded sound and light alarm system 3. Stable operation
stable operation in extreme environments from -30℃ to 60℃ 4. Precise distance measurement
0.1-meter accuracy, 3-meter effective detection range
Visual System ① 2MP high-definition CMOS sensor
② Supports 1920×1080 @ 30fps high-definition output
③ 3D noise reduction, automatic white balance, backlight compensation
④ 0.1Lux ultra-low illumination
Millimeter-wave radar ① High-frequency band detection (9.9 - 10.5 GHz)
② 160° ultra-wide horizontal detection angle
③ 0.01 meter distance resolution
Intelligent early warning system
Risk Level
Distance Range
Warning Method
Safe distance
2-3 meters
Intermittent beeping + green warning box
Caution distance
1-2 meters
Accelerated beeping + yellow warning box
Dangerous distance
0-1 meter
Continuous beeping + red STOP box

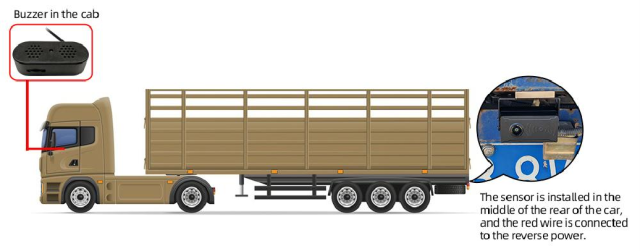

Installation Guide 1) Optimal installation height: 70 - 100 cm (from the ground to the sensor)
2) Suggested installation position: Center of the vehicle's rear end.
3) Power supply requirements: Compatible with 12V/24V DC
